Schuco SLIDING

Non-insulated, highly flexible sliding and lift-and-slide system with narrow face widths for large-area glazing units

For indoor areas or regions in which no additional thermal insulation is required, the Schüco AS 39 SC.NI, ASS 50, ASS 50.NI, ASS 39 PD.NI sliding and lift-and-slide system offers optimal solutions with high transparency. With narrow profile face widths, the non-insulated aluminium construction enables large glass areas with maximum light penetration, whilst requiring a minimum amount of space and generating almost no noise when the sliding units move. Together with a multitude of fittings and handle combinations, and a diverse range of opening types, Schüco AS 39 SC.NI, ASS 50, ASS 50.NI, ASS 39 PD.NI opens up a wide design spectrum for architects and developers.

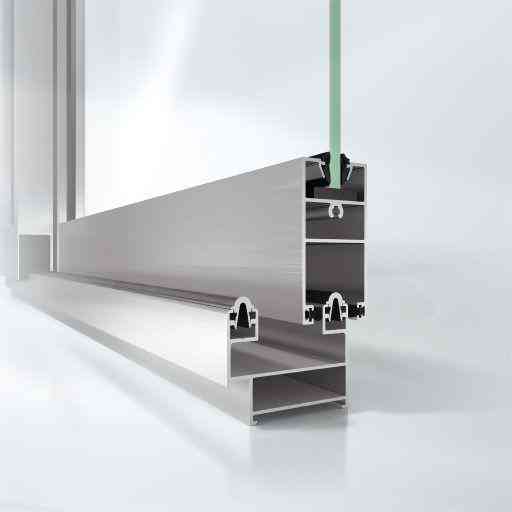

AS 39 SC.NI

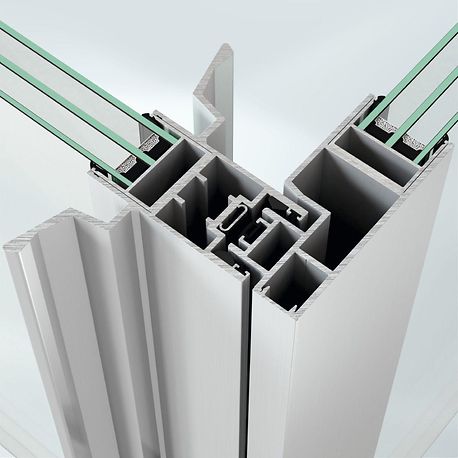

ASS 39 PD.NI

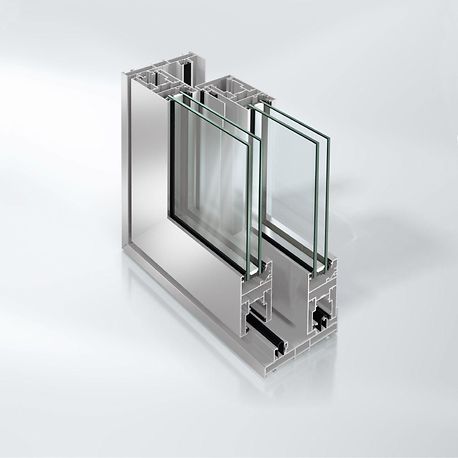

ASS 50.NI

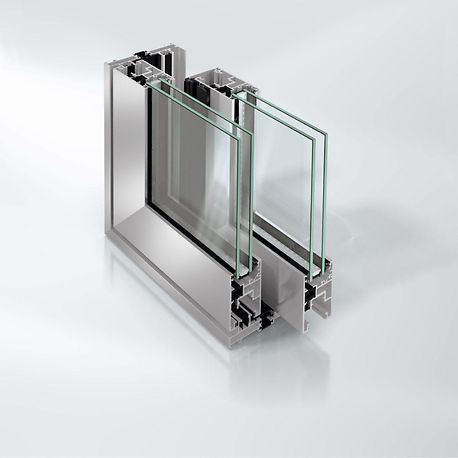

ASS 50

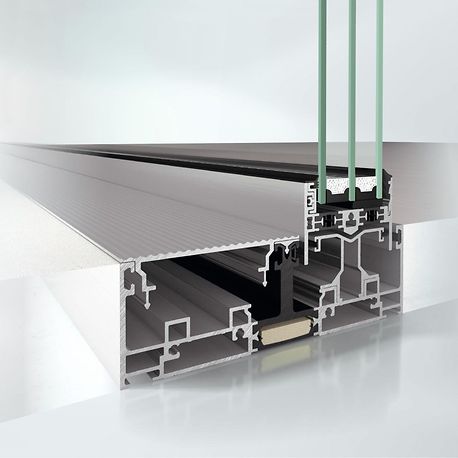

ASE 67 PD

SERIES PANEL WIDTH PANEL HEIGHT FRAME FACE WIDTH SASH FACE WIDTH GLASS LOAD (KG) GLASS MM INTERLOCK
AS 39 SC.NI 3000 3500 50 MM/79 MM 74 MM 200-250 Upto 28MM 37 MM
ASS 39 PD.NI 3000 3500 50 MM/84 MM   350 Upto 32 MM 39 MM
ASS 50.NI 3000 3000 50 MM/84 MM   150 Upto 32 MM 50 MM
ASS 50 3000 3000 50 MM/84 MM   Upto 400 Upto 32 MM 50 MM
ASE 67 PD 3200 3000         31 MM
